該指標適用MT4和MT5平臺。試圖監測Pinbar (或 "Pin-bar" 或 "Pin bar")并通過在看漲Pinbars的下方或者看跌Pinbars的上方放置“笑臉”符號對它們進行標記。它是一個純粹的價格行為指標，在其代碼中，不使用任何標準技術指標。Pinbar監測的設置可通過輸入參數進行修改。Pinbar監測器可對監測發出平臺示警或者郵件示警。

輸入參數：

UseAlerts (默認 = true) — 使該指標通過聲音對Pinbar監測發出平臺示警。

UseEmailAlerts (默認 = false) — 使該指標對Pinbar監測發出郵件示警?？赏ㄟ^工具->選項->郵件在MetaTrader上，對郵件進行相關設置。

UseCustomSettings (默認 = false) — 使指標應用下方描述的自定義Pinbar監測參數。

CustomMaxNoseBodySize (默認 = 0.33) — 條形圖允許的最大柱體/長度比例。

CustomNoseBodyPosition (默認 = 0.4) — 柱體應位于條形圖的頂部（看跌形態為底部）。

CustomLeftEyeOppositeDirection (默認 = true) — 使指標確認看漲Pinbar的左眼條形圖應為下跌形態，看跌熊市狀態的應為上漲形態。

CustomNoseSameDirection (默認 = true) — 使指標確認柱體與自身的形態保持同一個方向。

CustomNoseBodyInsideLeftEyeBody (默認 = false) — 使指標確認柱體應包含于左眼柱體的內部。

CustomLeftEyeMinBodySize (默認 = 0.1) — 左眼柱體的最小長度于與條形圖的長度相關。

CustomNoseProtruding (默認 = 0.5) — 條形圖突線的最小長度與條形圖的長度相關。

CustomNoseBodyToLeftEyeBody (默認 = 1) — 柱體的最大長度與左眼柱體相關。

CustomNoseLengthToLeftEyeLength (默認 = 0) — 突線的最小長度與左眼長度相關。

CustomLeftEyeDepth (默認 = 0.2) — 左眼的最小深度與它的長度相關。深度指的是條形圖突線后方的長度。

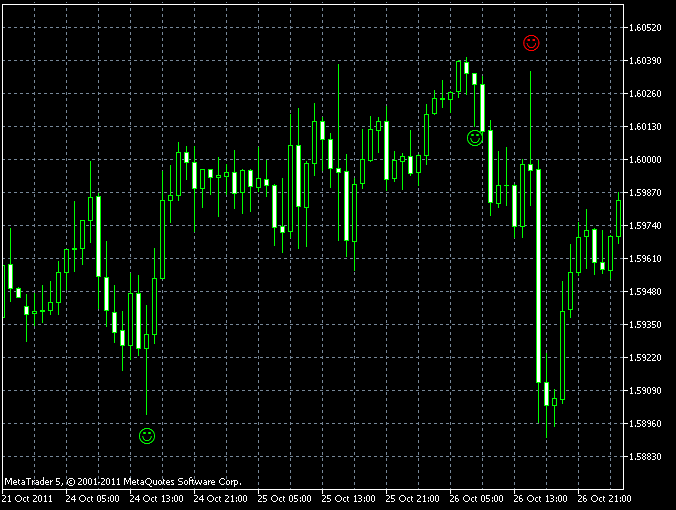

正如您在上圖中看到的，該指標并沒有Pinbar自身形態那么完美。建議您按照完美的Pinbar形態試著使用不同的監測設置過濾形態。您可以使用我們的 Pinbar交易的基礎策略，或者您可以根據您整體的外匯交易風格形成您自己的策略。另外，將該指標應用于您習慣貨幣對的長時段的時間框架（H1到W1）下比較不錯。而且，一單交易機會出現，您會受到示警。

標簽:MT4 MT5指標源碼

MT4源碼：
//+------------------------------------------------------------------+ //| Pinbar Detector | //| Copyright ? 2011, EarnForex.com | //| http://m.weiqiv.net.cn/ | //+------------------------------------------------------------------+ #property copyright "m.weiqiv.net.cn" #property link "http://m.weiqiv.net.cn" /* Pinbar Detector - detects Pinbars on charts. Has two sets of predefined settings: common and strict. Fully modifiable parameters of Pinbar pattern. Usage instructions: http://www.earnforex.com/forex-strategy/pinbar-trading-system */ #property indicator_chart_window #property indicator_buffers 2 #property indicator_color1 Red #property indicator_width1 2 #property indicator_color2 Lime #property indicator_width2 2 extern bool UseAlerts = true; extern bool UseEmailAlerts = false; // Don't forget to configure SMTP parameters in Tools->Options->Emails extern bool UseCustomSettings = false; // true = use below parameters extern double CustomMaxNoseBodySize = 0.33; // Max. Body / Candle length ratio of the Nose Bar extern double CustomNoseBodyPosition = 0.4; // Body position in Nose Bar (e.g. top/bottom 40%) extern bool CustomLeftEyeOppositeDirection = true; // true = Direction of Left Eye Bar should be opposite to pattern (bearish bar for bullish Pinbar pattern and vice versa) extern bool CustomNoseSameDirection = false; // true = Direction of Nose Bar should be the same as of pattern (bullish bar for bullish Pinbar pattern and vice versa) extern bool CustomNoseBodyInsideLeftEyeBody = false; // true = Nose Body should be contained inside Left Eye Body extern double CustomLeftEyeMinBodySize = 0.1; // Min. Body / Candle length ratio of the Left Eye Bar extern double CustomNoseProtruding = 0.5; // Minmum protrusion of Nose Bar compared to Nose Bar length extern double CustomNoseBodyToLeftEyeBody = 1; // Maximum relative size of the Nose Bar Body to Left Eye Bar Body extern double CustomNoseLengthToLeftEyeLength = 0; // Minimum relative size of the Nose Bar Length to Left Eye Bar Length extern double CustomLeftEyeDepth = 0.1; // Minimum relative depth of the Left Eye to its length; depth is difference with Nose's back // Indicator buffers double Down[]; double Up[]; // Global variables int LastBars = 0; double MaxNoseBodySize = 0.33; double NoseBodyPosition = 0.4; bool LeftEyeOppositeDirection = true; bool NoseSameDirection = false; bool NoseBodyInsideLeftEyeBody = false; double LeftEyeMinBodySize = 0.1; double NoseProtruding = 0.5; double NoseBodyToLeftEyeBody = 1; double NoseLengthToLeftEyeLength = 0; double LeftEyeDepth = 0.2; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int init() { //---- indicator buffers mapping SetIndexBuffer(0, Down); SetIndexBuffer(1, Up); //---- drawing settings SetIndexStyle(0, DRAW_ARROW); SetIndexArrow(0, 74); SetIndexStyle(1, DRAW_ARROW); SetIndexArrow(1, 74); //---- SetIndexEmptyValue(0, EMPTY_VALUE); SetIndexEmptyValue(1, EMPTY_VALUE); //---- indicator labels SetIndexLabel(0, "Bearish Pinbar"); SetIndexLabel(1, "Bullish Pinbar"); //---- if (UseCustomSettings) { MaxNoseBodySize = CustomMaxNoseBodySize; NoseBodyPosition = CustomNoseBodyPosition; LeftEyeOppositeDirection = CustomLeftEyeOppositeDirection; NoseSameDirection = CustomNoseSameDirection; LeftEyeMinBodySize = CustomLeftEyeMinBodySize; NoseProtruding = CustomNoseProtruding; NoseBodyToLeftEyeBody = CustomNoseBodyToLeftEyeBody; NoseLengthToLeftEyeLength = CustomNoseLengthToLeftEyeLength; LeftEyeDepth = CustomLeftEyeDepth; } return(0); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int start() { int NeedBarsCounted; double NoseLength, NoseBody, LeftEyeBody, LeftEyeLength; if (LastBars == Bars) return(0); NeedBarsCounted = Bars - LastBars; LastBars = Bars; if (NeedBarsCounted == Bars) NeedBarsCounted--; for (int i = NeedBarsCounted; i >= 1; i--) { // Won't have Left Eye for the left-most bar if (i == Bars - 1) continue; // Left Eye and Nose bars's paramaters NoseLength = High[i] - Low[i]; if (NoseLength == 0) NoseLength = Point; LeftEyeLength = High[i + 1] - Low[i + 1]; if (LeftEyeLength == 0) LeftEyeLength = Point; NoseBody = MathAbs(Open[i] - Close[i]); if (NoseBody == 0) NoseBody = Point; LeftEyeBody = MathAbs(Open[i + 1] - Close[i + 1]); if (LeftEyeBody == 0) LeftEyeBody = Point; // Bearish Pinbar if (High[i] - High[i + 1] >= NoseLength * NoseProtruding) // Nose protrusion { if (NoseBody / NoseLength <= MaxNoseBodySize) // Nose body to candle length ratio { if (1 - (High[i] - MathMax(Open[i], Close[i])) / NoseLength < NoseBodyPosition) // Nose body position in bottom part of the bar { if ((!LeftEyeOppositeDirection) || (Close[i + 1] > Open[i + 1])) // Left Eye bullish if required { if ((!NoseSameDirection) || (Close[i] < Open[i])) // Nose bearish if required { if (LeftEyeBody / LeftEyeLength >= LeftEyeMinBodySize) // Left eye body to candle length ratio { if ((MathMax(Open[i], Close[i]) <= High[i + 1]) && (MathMin(Open[i], Close[i]) >= Low[i + 1])) // Nose body inside Left Eye bar { if (NoseBody / LeftEyeBody <= NoseBodyToLeftEyeBody) // Nose body to Left Eye body ratio { if (NoseLength / LeftEyeLength >= NoseLengthToLeftEyeLength) // Nose length to Left Eye length ratio { if (Low[i] - Low[i + 1] >= LeftEyeLength * LeftEyeDepth) // Left Eye low is low enough { if ((!NoseBodyInsideLeftEyeBody) || ((MathMax(Open[i], Close[i]) <= MathMax(Open[i + 1], Close[i + 1])) && (MathMin(Open[i], Close[i]) >= MathMin(Open[i + 1], Close[i + 1])))) // Nose body inside Left Eye body if required { Down[i] = High[i] + 5 * Point + NoseLength / 5; if (i == 1) SendAlert("Bearish"); // Send alerts only for the latest fully formed bar } } } } } } } } } } } // Bullish Pinbar if (Low[i + 1] - Low[i] >= NoseLength * NoseProtruding) // Nose protrusion { if (NoseBody / NoseLength <= MaxNoseBodySize) // Nose body to candle length ratio { if (1 - (MathMin(Open[i], Close[i]) - Low[i]) / NoseLength < NoseBodyPosition) // Nose body position in top part of the bar { if ((!LeftEyeOppositeDirection) || (Close[i + 1] < Open[i + 1])) // Left Eye bearish if required { if ((!NoseSameDirection) || (Close[i] > Open[i])) // Nose bullish if required { if (LeftEyeBody / LeftEyeLength >= LeftEyeMinBodySize) // Left eye body to candle length ratio { if ((MathMax(Open[i], Close[i]) <= High[i + 1]) && (MathMin(Open[i], Close[i]) >= Low[i + 1])) // Nose body inside Left Eye bar { if (NoseBody / LeftEyeBody <= NoseBodyToLeftEyeBody) // Nose body to Left Eye body ratio { if (NoseLength / LeftEyeLength >= NoseLengthToLeftEyeLength) // Nose length to Left Eye length ratio { if (High[i + 1] - High[i] >= LeftEyeLength * LeftEyeDepth) // Left Eye high is high enough { if ((!NoseBodyInsideLeftEyeBody) || ((MathMax(Open[i], Close[i]) <= MathMax(Open[i + 1], Close[i + 1])) && (MathMin(Open[i], Close[i]) >= MathMin(Open[i + 1], Close[i + 1])))) // Nose body inside Left Eye body if required { Up[i] = Low[i] - 5 * Point - NoseLength / 5; if (i == 1) SendAlert("Bullish"); // Send alerts only for the latest fully formed bar } } } } } } } } } } } } } string TimeframeToString(int P) { switch(P) { case PERIOD_M1: return("M1"); case PERIOD_M5: return("M5"); case PERIOD_M15: return("M15"); case PERIOD_M30: return("M30"); case PERIOD_H1: return("H1"); case PERIOD_H4: return("H4"); case PERIOD_D1: return("D1"); case PERIOD_W1: return("W1"); case PERIOD_MN1: return("MN1"); } } void SendAlert(string dir) { string per = TimeframeToString(Period()); if (UseAlerts) { Alert(dir + " Pinbar on ", Symbol(), " @ ", per); PlaySound("alert.wav"); } if (UseEmailAlerts) SendMail(Symbol() + " @ " + per + " - " + dir + " Pinbar", dir + " Pinbar on " + Symbol() + " @ " + per + " as of " + TimeToStr(TimeCurrent())); }
點擊復制上述代碼粘貼到到公式管理器

MT5源碼：//+------------------------------------------------------------------+ //| Pinbar Detector | //| Copyright ? 2011, EarnForex.com | //| http://www.earnforex.com/ | //+------------------------------------------------------------------+ #property copyright "m.weiqiv.net.cn" #property link "http://m.weiqiv.net.cn" #property version "1.0" #property description "Pinbar Detector - detects Pinbars on charts." #property description "Has two sets of predefined settings: common and strict." #property description "Fully modifiable parameters of Pinbar pattern." #property description "Usage instructions:" #property description "http://www.earnforex.com/forex-strategy/pinbar-trading-system" #property indicator_chart_window #property indicator_buffers 2 #property indicator_plots 1 #property indicator_type1 DRAW_COLOR_ARROW #property indicator_color1 clrLime, clrRed #property indicator_width1 2 input bool UseAlerts = true; input bool UseEmailAlerts = false; // Don't forget to configure SMTP parameters in Tools->Options->Emails input bool UseCustomSettings = false; // true = use below parameters input double CustomMaxNoseBodySize = 0.33; // Max. Body / Candle length ratio of the Nose Bar input double CustomNoseBodyPosition = 0.4; // Body position in Nose Bar (e.g. top/bottom 40%) input bool CustomLeftEyeOppositeDirection = true; // true = Direction of Left Eye Bar should be opposite to pattern (bearish bar for bullish Pinbar pattern and vice versa) input bool CustomNoseSameDirection = false; // true = Direction of Nose Bar should be the same as of pattern (bullish bar for bullish Pinbar pattern and vice versa) input bool CustomNoseBodyInsideLeftEyeBody = false; // true = Nose Body should be contained inside Left Eye Body input double CustomLeftEyeMinBodySize = 0.1; // Min. Body / Candle length ratio of the Left Eye Bar input double CustomNoseProtruding = 0.5; // Minmum protrusion of Nose Bar compared to Nose Bar length input double CustomNoseBodyToLeftEyeBody = 1; // Maximum relative size of the Nose Bar Body to Left Eye Bar Body input double CustomNoseLengthToLeftEyeLength = 0; // Minimum relative size of the Nose Bar Length to Left Eye Bar Length input double CustomLeftEyeDepth = 0.1; // Minimum relative depth of the Left Eye to its length; depth is difference with Nose's back // Indicator buffers double UpDown[]; double Color[]; // Global variables int LastBars = 0; double MaxNoseBodySize = 0.33; double NoseBodyPosition = 0.4; bool LeftEyeOppositeDirection = true; bool NoseSameDirection = false; bool NoseBodyInsideLeftEyeBody = false; double LeftEyeMinBodySize = 0.1; double NoseProtruding = 0.5; double NoseBodyToLeftEyeBody = 1; double NoseLengthToLeftEyeLength = 0; double LeftEyeDepth = 0.1; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ void OnInit() { //---- indicator buffers mapping SetIndexBuffer(0, UpDown, INDICATOR_DATA); SetIndexBuffer(1, Color, INDICATOR_COLOR_INDEX); ArraySetAsSeries(UpDown, true); ArraySetAsSeries(Color, true); //---- drawing settings PlotIndexSetInteger(0, PLOT_ARROW, 74); PlotIndexSetDouble(0, PLOT_EMPTY_VALUE, EMPTY_VALUE); PlotIndexSetString(0, PLOT_LABEL, "Pinbar"); //---- if (UseCustomSettings) { MaxNoseBodySize = CustomMaxNoseBodySize; NoseBodyPosition = CustomNoseBodyPosition; LeftEyeOppositeDirection = CustomLeftEyeOppositeDirection; NoseSameDirection = CustomNoseSameDirection; LeftEyeMinBodySize = CustomLeftEyeMinBodySize; NoseProtruding = CustomNoseProtruding; NoseBodyToLeftEyeBody = CustomNoseBodyToLeftEyeBody; NoseLengthToLeftEyeLength = CustomNoseLengthToLeftEyeLength; LeftEyeDepth = CustomLeftEyeDepth; } } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime &time[], const double &Open[], const double &High[], const double &Low[], const double &Close[], const long &tickvolume[], const long &volume[], const int &spread[]) { int NeedBarsCounted; double NoseLength, NoseBody, LeftEyeBody, LeftEyeLength; ArraySetAsSeries(Open, true); ArraySetAsSeries(High, true); ArraySetAsSeries(Low, true); ArraySetAsSeries(Close, true); if (LastBars == rates_total) return(rates_total); NeedBarsCounted = rates_total - LastBars; LastBars = rates_total; if (NeedBarsCounted == rates_total) NeedBarsCounted--; UpDown[0] = EMPTY_VALUE; for (int i = NeedBarsCounted; i >= 1; i--) { // Prevents bogus indicator arrows from appearing (looks like PlotIndexSetDouble(0, PLOT_EMPTY_VALUE, EMPTY_VALUE); is not enough.) UpDown[i] = EMPTY_VALUE; // Won't have Left Eye for the left-most bar if (i == rates_total - 1) continue; // Left Eye and Nose bars's paramaters NoseLength = High[i] - Low[i]; if (NoseLength == 0) NoseLength = _Point; LeftEyeLength = High[i + 1] - Low[i + 1]; if (LeftEyeLength == 0) LeftEyeLength = _Point; NoseBody = MathAbs(Open[i] - Close[i]); if (NoseBody == 0) NoseBody = _Point; LeftEyeBody = MathAbs(Open[i + 1] - Close[i + 1]); if (LeftEyeBody == 0) LeftEyeBody = _Point; // Bearish Pinbar if (High[i] - High[i + 1] >= NoseLength * NoseProtruding) // Nose protrusion { if (NoseBody / NoseLength <= MaxNoseBodySize) // Nose body to candle length ratio { if (1 - (High[i] - MathMax(Open[i], Close[i])) / NoseLength < NoseBodyPosition) // Nose body position in bottom part of the bar { if ((!LeftEyeOppositeDirection) || (Close[i + 1] > Open[i + 1])) // Left Eye bullish if required { if ((!NoseSameDirection) || (Close[i] < Open[i])) // Nose bearish if required { if (LeftEyeBody / LeftEyeLength >= LeftEyeMinBodySize) // Left eye body to candle length ratio { if ((MathMax(Open[i], Close[i]) <= High[i + 1]) && (MathMin(Open[i], Close[i]) >= Low[i + 1])) // Nose body inside Left Eye bar { if (NoseBody / LeftEyeBody <= NoseBodyToLeftEyeBody) // Nose body to Left Eye body ratio { if (NoseLength / LeftEyeLength >= NoseLengthToLeftEyeLength) // Nose length to Left Eye length ratio { if (Low[i] - Low[i + 1] >= LeftEyeLength * LeftEyeDepth) // Left Eye low is low enough { if ((!NoseBodyInsideLeftEyeBody) || ((MathMax(Open[i], Close[i]) <= MathMax(Open[i + 1], Close[i + 1])) && (MathMin(Open[i], Close[i]) >= MathMin(Open[i + 1], Close[i + 1])))) // Nose body inside Left Eye body if required { UpDown[i] = High[i] + 5 * _Point + NoseLength / 5; Color[i] = 1; if (i == 1) SendAlert("Bearish"); // Send alerts only for the latest fully formed bar } } } } } } } } } } } // Bullish Pinbar if (Low[i + 1] - Low[i] >= NoseLength * NoseProtruding) // Nose protrusion { if (NoseBody / NoseLength <= MaxNoseBodySize) // Nose body to candle length ratio { if (1 - (MathMin(Open[i], Close[i]) - Low[i]) / NoseLength < NoseBodyPosition) // Nose body position in top part of the bar { if ((!LeftEyeOppositeDirection) || (Close[i + 1] < Open[i + 1])) // Left Eye bearish if required { if ((!NoseSameDirection) || (Close[i] > Open[i])) // Nose bullish if required { if (LeftEyeBody / LeftEyeLength >= LeftEyeMinBodySize) // Left eye body to candle length ratio { if ((MathMax(Open[i], Close[i]) <= High[i + 1]) && (MathMin(Open[i], Close[i]) >= Low[i + 1])) // Nose body inside Left Eye bar { if (NoseBody / LeftEyeBody <= NoseBodyToLeftEyeBody) // Nose body to Left Eye body ratio { if (NoseLength / LeftEyeLength >= NoseLengthToLeftEyeLength) // Nose length to Left Eye length ratio { if (High[i + 1] - High[i] >= LeftEyeLength * LeftEyeDepth) // Left Eye high is high enough { if ((!NoseBodyInsideLeftEyeBody) || ((MathMax(Open[i], Close[i]) <= MathMax(Open[i + 1], Close[i + 1])) && (MathMin(Open[i], Close[i]) >= MathMin(Open[i + 1], Close[i + 1])))) // Nose body inside Left Eye body if required { UpDown[i] = Low[i] - 5 * _Point - NoseLength / 5; Color[i] = 0; if (i == 1) SendAlert("Bullish"); // Send alerts only for the latest fully formed bar } } } } } } } } } } } } return(rates_total); } string TimeframeToString(int P) { switch(P) { case PERIOD_M1: return("M1"); case PERIOD_M2: return("M2"); case PERIOD_M3: return("M3"); case PERIOD_M4: return("M4"); case PERIOD_M5: return("M5"); case PERIOD_M6: return("M6"); case PERIOD_M10: return("M10"); case PERIOD_M12: return("M12"); case PERIOD_M15: return("M15"); case PERIOD_M20: return("M20"); case PERIOD_M30: return("M30"); case PERIOD_H1: return("H1"); case PERIOD_H2: return("H2"); case PERIOD_H3: return("H3"); case PERIOD_H4: return("H4"); case PERIOD_H6: return("H6"); case PERIOD_H8: return("H8"); case PERIOD_H12: return("H12"); case PERIOD_D1: return("D1"); case PERIOD_W1: return("W1"); case PERIOD_MN1: return("MN1"); default: return(IntegerToString(P)); } } void SendAlert(string dir) { string per = TimeframeToString(_Period); if (UseAlerts) { Alert(dir + " Pinbar on ", _Symbol, " @ ", per); PlaySound("alert.wav"); } if (UseEmailAlerts) SendMail(_Symbol + " @ " + per + " - " + dir + " Pinbar", dir + " Pinbar on " + _Symbol + " @ " + per + " as of " + TimeToString(TimeCurrent())); }
點擊復制上述代碼粘貼到到公式管理器
