可用于MT4和MT5。

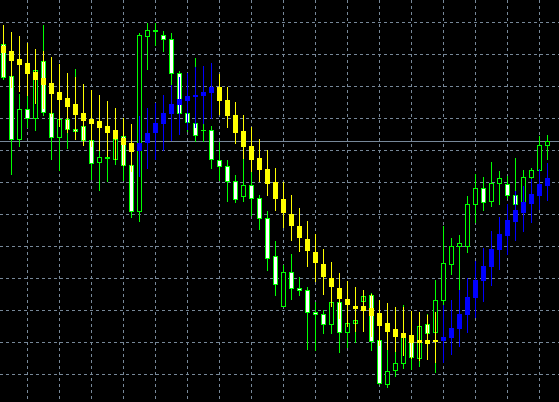

移動平均線蠟燭圖MetaTrader指標 是一個使用蠟燭條形圖標準移動平均線的可視化圖表。它是基于考慮到收盤價、開盤價、低位和高位計算的移動平均線的值而描繪的蠟燭圖。與傳統移動平均線指標相比，它可以查看市場信息當中的一小段。該指標適用于任何貨幣對、時間框架和移動平均線模式。

輸入參數：

MAPeriod (默認 = 10) — 移動平均線用于計算的時段。

MAType (默認 = 0 (SMA)) — 移動平均線的方式。

該指標并不是非常適合直接用于交易。它僅暗示移動平均線與一些其它圖表參數一樣出現交叉。將其用于通過觀察蠟燭圖的實體長度和影線長度來識別非常規的價格行為。該指標的顏色變化似乎是一個不錯的進場信號，但它會給出許多假信號。

標簽:MT4 MT5指標源碼

MT4源碼：
//+------------------------------------------------------------------+ //| MA-Candlesticks.mq4 | //| Copyright ? 2010, m.weiqiv.net.cn| //| http://m.weiqiv.net.cn/ | //+------------------------------------------------------------------+ #property copyright "m.weiqiv.net.cn" #property link "http://m.weiqiv.net.cn" /* Displays the moving average in form of the candlesticks. This way, the moving average is shown for Close, Open, High and Low. Works with any trading instrument, timeframe, period and MA type. */ #property indicator_chart_window #property indicator_buffers 4 #property indicator_color1 Yellow #property indicator_color2 Blue #property indicator_color3 Yellow #property indicator_color4 Blue #property indicator_width1 1 #property indicator_width2 1 #property indicator_width3 3 #property indicator_width4 3 //---- extern color color1 = Yellow; extern color color2 = Blue; extern color color3 = Yellow; extern color color4 = Blue; extern int MAPeriod = 10; extern string strType = "Moving Average Types:"; extern string strm0 = "0 = SMA, 1 = EMA"; extern string strm1 = "2 = SMMA, 3 = LWMA"; extern int MAType = 0; //---- buffers double ExtMapBuffer1[]; double ExtMapBuffer2[]; double ExtMapBuffer3[]; double ExtMapBuffer4[]; //---- int ExtCountedBars = 0; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //|------------------------------------------------------------------| int init() { //---- indicators SetIndexStyle(0, DRAW_HISTOGRAM, 0, 1, color1); SetIndexBuffer(0, ExtMapBuffer1); SetIndexStyle(1, DRAW_HISTOGRAM, 0, 1, color2); SetIndexBuffer(1, ExtMapBuffer2); SetIndexStyle(2, DRAW_HISTOGRAM, 0, 3, color3); SetIndexBuffer(2, ExtMapBuffer3); SetIndexStyle(3, DRAW_HISTOGRAM, 0, 3, color4); SetIndexBuffer(3, ExtMapBuffer4); //---- SetIndexDrawBegin(0, MAPeriod); SetIndexDrawBegin(1, MAPeriod); SetIndexDrawBegin(2, MAPeriod); SetIndexDrawBegin(3, MAPeriod); //---- indicator buffers mapping SetIndexBuffer(0,ExtMapBuffer1); SetIndexBuffer(1,ExtMapBuffer2); SetIndexBuffer(2,ExtMapBuffer3); SetIndexBuffer(3,ExtMapBuffer4); IndicatorShortName("MA-Candlesticks(" + MAPeriod + ")"); //---- initialization done return(0); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int start() { double MAOpen, MAHigh, MALow, MAClose; if(Bars <= (MAPeriod)) return(0); ExtCountedBars = IndicatorCounted(); //---- check for possible errors if (ExtCountedBars<0) return(-1); //---- last counted bar will be recounted if (ExtCountedBars>0) ExtCountedBars--; int pos = Bars - ExtCountedBars - 1; while(pos >= 0) { MAClose = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_CLOSE, pos); MAOpen = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_OPEN, pos); MAHigh = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_HIGH, pos); MALow = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_LOW, pos); if (MAClose > MAOpen) { ExtMapBuffer1[pos]=MALow; ExtMapBuffer2[pos]=MAHigh; } else { ExtMapBuffer1[pos]=MAHigh; ExtMapBuffer2[pos]=MALow; } ExtMapBuffer3[pos]=MAOpen; ExtMapBuffer4[pos]=MAClose; pos--; } //---- return(0); } //+------------------------------------------------------------------+
點擊復制上述代碼粘貼到到公式管理器

MT5源碼：//+------------------------------------------------------------------+ //| MA-Candlesticks.mq5 | //| Copyright ? 2010, m.weiqiv.net.cn | //| http://m.weiqiv.net.cn/ | //+------------------------------------------------------------------+ #property copyright "m.weiqiv.net.cn" #property link "http://m.weiqiv.net.cn" #property version "1.0" #property description "Displays the moving average in form of the candlesticks." #property description "This way, the moving average is shown for Close, Open, High and Low." #property description "Works with any trading instrument, timeframe, period and MA type." //--- indicator settings #property indicator_chart_window #property indicator_buffers 5 #property indicator_plots 1 #property indicator_type1 DRAW_COLOR_CANDLES #property indicator_color1 Blue, Yellow #property indicator_label1 "MA Open;MA High;MA Low;MA Close" //--- indicator buffers double ExtOBuffer[]; double ExtHBuffer[]; double ExtLBuffer[]; double ExtCBuffer[]; double ExtColorBuffer[]; //MA buffers double MACloseBuf[]; double MAOpenBuf[]; double MAHighBuf[]; double MALowBuf[]; //Input parameters input int MAPeriod = 10; input ENUM_MA_METHOD MAType = MODE_SMA; //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ void OnInit() { //--- indicator buffers mapping SetIndexBuffer(0, ExtOBuffer, INDICATOR_DATA); SetIndexBuffer(1, ExtHBuffer, INDICATOR_DATA); SetIndexBuffer(2, ExtLBuffer, INDICATOR_DATA); SetIndexBuffer(3, ExtCBuffer, INDICATOR_DATA); SetIndexBuffer(4, ExtColorBuffer, INDICATOR_COLOR_INDEX); //--- IndicatorSetInteger(INDICATOR_DIGITS, _Digits); IndicatorSetString(INDICATOR_SHORTNAME, "MA-Candlesticks(" + IntegerToString(MAPeriod) + ")"); //--- sets drawing line empty value PlotIndexSetDouble(0, PLOT_EMPTY_VALUE, 0.0); } //+------------------------------------------------------------------+ //| Moving Average Candlesticks | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total,const int prev_calculated, const datetime &time[], const double &open[], const double &high[], const double &low[], const double &close[], const long &tickvolume[], const long &volume[], const int &spread[]) { int i, limit, myMA; myMA = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_CLOSE); if (CopyBuffer(myMA, 0, 0, rates_total, MACloseBuf) != rates_total) return(0); myMA = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_OPEN); if (CopyBuffer(myMA, 0, 0, rates_total, MAOpenBuf) != rates_total) return(0); myMA = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_HIGH); if (CopyBuffer(myMA, 0, 0, rates_total, MAHighBuf) != rates_total) return(0); myMA = iMA(NULL, 0, MAPeriod, 0, MAType, PRICE_LOW); if (CopyBuffer(myMA, 0, 0, rates_total, MALowBuf) != rates_total) return(0); //--- preliminary calculations if(prev_calculated <= 1) { //--- set first candle ExtLBuffer[0] = MALowBuf[0]; ExtHBuffer[0] = MAHighBuf[0]; ExtOBuffer[0] = MAOpenBuf[0]; ExtCBuffer[0] = MACloseBuf[0]; limit=1; } else limit = prev_calculated - 1; //--- the main loop of calculations for(i = limit; i < rates_total; i++) { ExtOBuffer[i] = MAOpenBuf[i]; ExtCBuffer[i] = MACloseBuf[i]; if (MAOpenBuf[i] < MACloseBuf[i]) { ExtLBuffer[i] = MALowBuf[i]; ExtHBuffer[i] = MAHighBuf[i]; ExtColorBuffer[i] = 0.0; // set color DodgerBlue } else { ExtLBuffer[i] = MAHighBuf[i]; ExtHBuffer[i] = MALowBuf[i]; ExtColorBuffer[i] = 1.0; // set color Red } } return(rates_total); } //+------------------------------------------------------------------+
點擊復制上述代碼粘貼到到公式管理器
